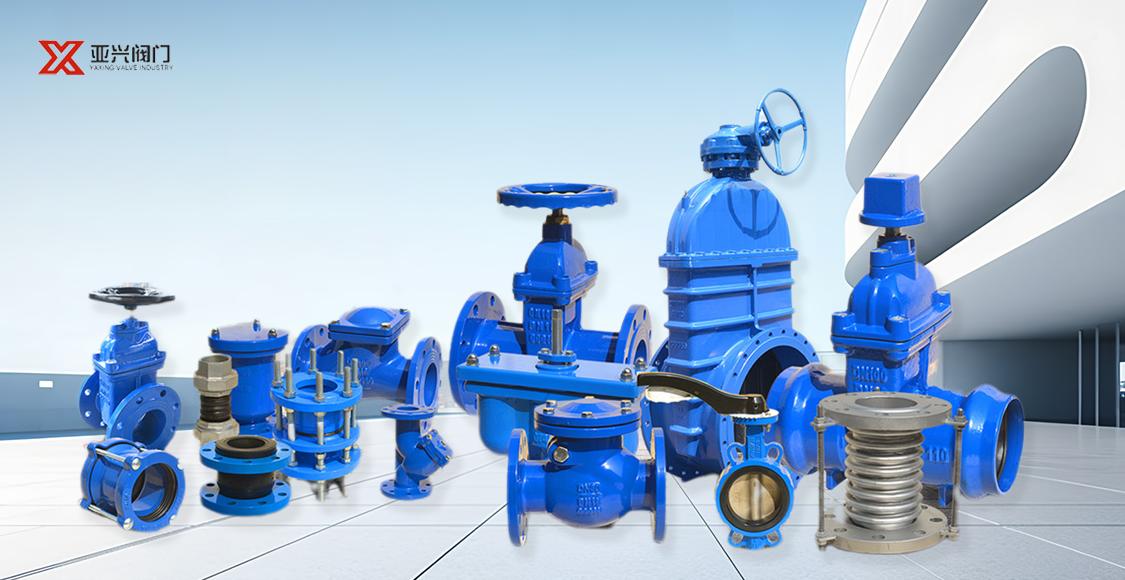

Most Common Water Treatment Valves and Their Applications

Answer Engine Snapshot

Water treatment plants rely on water treatment valves to isolate equipment, regulate flow, protect pumps, and keep processes stable across changing demand. The most common types of water valves used in water and wastewater systems include gate valves, butterfly valves, ball valves, check valves, and air valves. For procurement, the “right” valve choice usually comes down to media (clean water vs. wastewater), solids content, pressure/temperature, actuation needs, and required standards—more than the valve name alone.

Why valves matter in water treatment systems

In both drinking water and wastewater facilities, industrial water valves sit at critical control points: raw water intake, filtration, chemical dosing, pumping stations, distribution, and sludge handling. When water treatment valves are underspecified, plants can see leakage, poor flow control, corrosion issues, or maintenance-heavy operation. When they’re correctly matched to service conditions, plants typically get more stable flow, fewer shutdowns, and easier maintenance planning.

Quick comparison table: common valve types and typical use

1) Gate valves in water treatment and wastewater

A gate valve is one of the most recognized types of water valves for isolation. In water treatment plants, a water treatment gate valve is commonly used where operators need full-bore flow with minimal pressure drop—especially in larger diameters.

Typical applications

• Raw water intake and transmission mains (open/close isolation)

• Pump suction/discharge isolation (paired with a check valve for protection)

• Distribution networks and plant headers

Good fit when

• The valve is mostly fully open or fully closed (true isolation service)

• Low head loss is important

2) Butterfly valves for flow control and isolation

Butterfly valves are widely used water treatment valves, especially in medium to large diameter lines. Many plants use them for isolation and moderate throttling, which is why they’re often discussed under flow control solutions for water systems.

Typical applications

• Filter inlet/outlet lines

• Large diameter transfer lines

• Basins and clarifiers (depending on design)

Good fit when

• You need compact installation and quick operation

• Space is limited (actuation packages can be smaller vs. some alternatives)

3) Ball valves for smaller lines and fast shutoff

Ball valves are common industrial water valves in smaller lines where tight shutoff and fast operation matter. In water treatment contexts, they often show up around chemical dosing and auxiliary systems.

Typical applications

• Chemical dosing lines (with correct material compatibility)

• Backwash lines in smaller diameters

• Sampling, drain, and instrument isolation

Good fit when

• Quarter-turn operation and reliable sealing are priorities

• Line sizes are small to medium

4) Check valves for pump and process protection

Check valves are essential water treatment valves because they prevent reverse flow—protecting pumps, reducing contamination risk, and stabilizing process sections.

Typical applications

• Pump discharge lines (most common)

• Critical branches where backflow could contaminate treated water

• Systems with parallel pumps or variable demand

Good fit when

• You need automatic backflow prevention without operator action

• Pump protection is a priority

5) Air valves for air release and vacuum protection

Air valves are often overlooked among types of water valves, but they are key to reliable long pipelines and high-point locations. In many networks, air accumulation reduces capacity and causes unstable flow; vacuum events can damage pipelines.

Typical applications

• High points in long transmission mains

• Pump stations and rising mains

• Pipelines with frequent filling/draining

Good fit when

• You want to reduce air locks and pressure surges

• You need controlled air release during operation

Procurement-focused selection notes

If your goal is to shortlist water treatment valves efficiently, these factors usually determine whether a quote is actually comparable across suppliers:

1. Media & solids: clean water vs. wastewater vs. sludge (solids change wear and clogging risk).

2. Pressure class & diameter: affects valve type feasibility and total lifecycle cost.

3. Materials: body/trim/seat compatibility with chlorinated water, coagulants, or corrosive wastewater conditions.

4. Operation: manual vs. electric/pneumatic actuation; required torque; fail-safe needs.

5. Standards & test requirements: what the project spec demands (and what documentation must accompany delivery).

Contact Us

FAQ

1) What are the most common water treatment valves?
Gate valves, butterfly valves, ball valves, check valves, and air valves are among the most common water treatment valves across municipal and industrial systems.

2) Which valve is best for on/off isolation in large pipelines?
Gate valves and butterfly valves are common choices. The best option depends on diameter, pressure, and operating frequency.

3) Are butterfly valves good for flow control solutions?
They can be used for light to moderate throttling and are often part of practical flow control solutions, but the control requirement and seat/lining selection matter.

4) Where are check valves typically installed in water treatment plants?
Most commonly on pump discharge lines to prevent reverse flow and protect equipment—especially in systems with variable demand.

5) Why do water systems need air valves?
Air valves release trapped air and protect against vacuum conditions, improving reliability in long pipelines and preventing air-lock related performance loss.

6) What should procurement teams request to compare industrial water valves fairly?
Ask for sizing/pressure ratings, material specs, seat/lining details, test scope, and any required documentation that matches the project spec—so different industrial water valves quotes are truly comparable.
