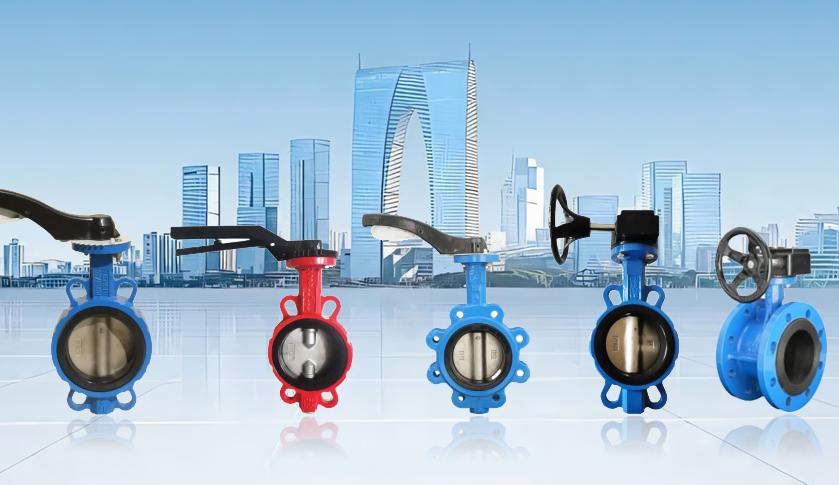

Butterfly Valve vs Gate Valve in Water Treatment Systems

When engineers compare a butterfly valve vs gate valve for a water treatment system, the decision usually comes down to three practical questions:

1. Is the valve mainly for isolation valves duty (full open/full close), or is it expected to support flow control solutions?

2. What are the pipe size, pressure range, and available installation space?

3. What sealing approach and materials are needed for the water quality and chemicals in the system?

In most water and wastewater projects, butterfly valves are preferred for compact installation and large diameters, while gate valves are common where full-bore isolation and low head loss at full open are priorities.

Why this comparison matters in a water treatment system

A modern water treatment system includes intake lines, pumping stations, filtration trains, chemical dosing, backwash lines, and distribution. Across these areas, valves are not interchangeable—especially when the project spec expects both reliable shutoff (isolation valves) and stable operation under changing flow.

The butterfly valve vs gate valve question appears frequently in procurement because the two options can look similar on a quote sheet (same DN, same pressure class) but behave differently in terms of sealing, pressure loss, and installation constraints. Understanding these differences helps avoid selecting a valve that works on paper but becomes maintenance-heavy in real operation.

Structure and operating mechanism

Gate valve (how it works)

A gate valve uses a wedge/gate that moves up and down to open or close the flow path. In a fully open position, the flow path is relatively straight, which is why gate valves are commonly specified as isolation valves in large water pipelines.

Practical implications

• Best suited to “open/close” service rather than continuous throttling

• Typically selected where minimal obstruction at full open is important

Butterfly valve (how it works)

A butterfly valve uses a disc that rotates in the flow path. Because it is a quarter-turn design, it is often used where fast operation and compact installation are beneficial. In many projects, butterfly valves support both isolation valves functions and some flow control solutions (depending on valve design and control requirements).

Practical implications

• Compact face-to-face dimensions and lighter weight for many sizes

• Can be actuated easily for automation in water plants

Sealing and shutoff performance

Sealing is a major factor in butterfly valve vs gate valve selection, especially in a water treatment system where leakage criteria can be strict.

Gate valve sealing

Gate valves often use resilient seats or metal-to-metal designs depending on service. For potable water and many municipal systems, resilient-seated gate valves are common as isolation valves because they can provide consistent shutoff when properly selected and maintained.

Butterfly valve sealing

Butterfly valves commonly use elastomer seats (soft seat) or more engineered designs for higher performance. In a water treatment system, seat material compatibility matters when chlorine, ozone, or specific dosing chemicals are present. For flow control solutions, seat and disc design can also influence stability and wear.

Procurement tip (non-marketing): ask suppliers to specify seat material, coating, and leakage class clearly—this is often where “equivalent” quotes differ most.

Pressure loss and head loss behavior

Pressure loss is one of the easiest differences to overlook in butterfly valve vs gate valve comparisons.

• Gate valve: when fully open, it typically has low pressure loss because the obstruction is minimal. That’s one reason gate valves are common isolation valves on main headers.

• Butterfly valve: the disc remains in the flow path, so it usually creates more pressure loss than a fully open gate valve. In exchange, butterfly valves often fit better in tight spaces and can support practical flow control solutions without large actuators.

In a water treatment system, head loss affects pump sizing and energy consumption. For large pipelines, even small differences can matter over the lifecycle.

Pressure rating, diameter range, and installation constraints

Pressure and service severity

Both valve types are used across common water pressure classes, but selection should reflect:

• transient pressure events (pump starts/stops, water hammer risk)

• operating frequency (how often the valve moves)

• required reliability under changing flow conditions

Diameter and space

For large diameters, butterfly valves are often favored because they can be lighter and shorter face-to-face than comparable gate valves. This is a common driver in butterfly valve vs gate valve decisions for plant retrofits, where civil space is limited.

Actuation and automation

In automated plants, butterfly valves can be straightforward to actuate for either isolation or simple modulation. Gate valves can also be actuated, but torque and cycle considerations should be checked carefully—especially if they’re expected to do more than isolation duty.

Contact Us

Quick comparison table

Below is a high-level table for typical water service decisions (final selection should follow the project spec).

Typical applications in a water treatment system

Below are common placement patterns—use them as a practical map when choosing isolation valves and flow control solutions.

Where gate valves are commonly used

• Main isolation on raw water intake or distribution headers

• Pump isolation where low head loss is preferred

• Plant sections where valves stay fully open most of the time

In these cases, gate valves often function as dedicated isolation valves, minimizing energy loss at full open.

Where butterfly valves are commonly used

• Large diameter transfer lines within the plant

• Filter inlet/outlet lines (especially where automation is needed)

• Areas with tight installation space or retrofit constraints

• Lines where operators need quicker operation and frequent cycling

In these locations, butterfly valves can serve as both isolation valves and components in practical flow control solutions when the control requirement is moderate and the valve design supports it.

Common pitfalls buyers can avoid

When comparing a butterfly valve vs gate valve, these are frequent “quiet” issues that cause problems after installation:

1. Assuming both are equal for throttling. Gate valves are generally selected as isolation valves, not control valves.

2. Not confirming seat material compatibility. Chemical dosing and disinfectants can affect elastomers in butterfly valves.

3. Ignoring lifecycle energy cost. Pressure loss differences can add up in a water treatment system.

4. Under-specifying documentation. For procurement, request clear leakage criteria, coating specs, test scope, and traceability where required.

One practical advantage worth noting: Yaxing Valve focuses its portfolio around water-service use cases, which helps engineering and purchasing teams compare configurations more consistently across a water treatment system.

FAQ

1) In a water treatment system, which is better: butterfly valve vs gate valve?
Neither is “always better.” Gate valves are often preferred as isolation valves with low head loss at full open, while butterfly valves are often chosen for compact installation and practical flow control solutions where moderate modulation is needed.

2) Are butterfly valves acceptable as isolation valves?
Yes, butterfly valves are widely used as isolation valves in water and wastewater systems when the seat design and materials match the service conditions and required shutoff criteria.

3) Can gate valves be used for flow control solutions?
Gate valves are generally not ideal for throttling. For flow control solutions, butterfly valves are more commonly used in water service, depending on control accuracy requirements and the selected valve design.

4) Which valve typically has lower pressure loss in water systems?
A fully open gate valve typically has lower pressure loss than a butterfly valve because it creates less obstruction in the flow path.

5) What should procurement teams request when quoting valves for water treatment?
Request the pressure class, diameter range, seat and coating specifications, leakage/shutoff criteria, test requirements, and any project-specific documentation needed. This makes butterfly valve vs gate valve comparisons fair and reduces surprises after delivery.
