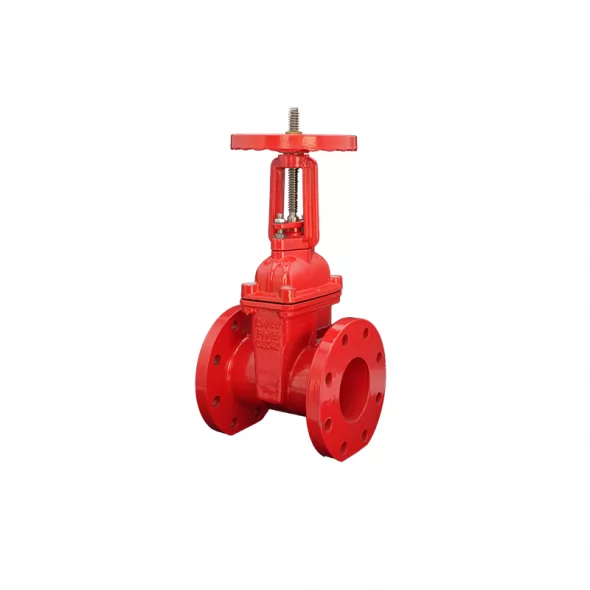

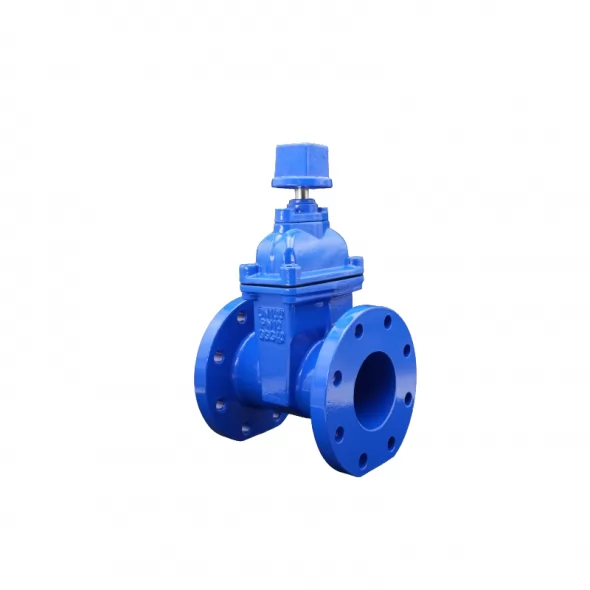

AWWA Resilient Seated Gate Valve
Technical Parameter
Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50+EPDM |
| 3 | Wedge Nut | Brass |
| 4 | Stem | SS420 |
| 5 | Bolts | CS Gr 8.8 |
| 6 | Gasket | EPDM |
| 7 | Bonnet | Ductile Iron GGG50 |
| 8 | O Ring | EPDM |
| 9 | Gland | Ductile Iron GGG50 |
| 10 | Yoke | Ductile Iron GGG50 |
| 11 | Stem Nut | Brass |
| 12 | Handwheel | Ductile Iron GGG50 |
| 13 | Lock nut | Carbon Steel |
| 14 | Pin | Carbon Steel |
| 15 | Nuts | Carbon Steel |
| 16 | Bolts | Carbon Steel |
Dimensions(mm)
| DN | L | D | C | b | n-d | W | Full Open H |
| DN50 | 178 | 152 | 121 | 16 | 4-19 | 160 | 365 |
| DN65 | 190 | 178 | 140 | 18 | 4-19 | 160 | 400 |
| DN80 | 203 | 190 | 152.4 | 19 | 4-19 | 180 | 470 |
| DN100 | 229 | 229 | 190.5 | 24 | 8-19 | 200 | 525 |
| DN125 | 254 | 254 | 216 | 26 | 8-22 | 250 | 660 |
| DN150 | 267 | 279 | 241.3 | 26 | 8-22 | 250 | 725 |
| DN200 | 292 | 343 | 298.5 | 29 | 8-22 | 300 | 930 |
| DN250 | 330 | 406 | 362 | 31 | 12-25 | 330 | 1200 |
| DN300 | 356 | 483 | 431.8 | 32 | 12-25 | 380 | 1310 |
| DN350 | 381 | 533 | 476 | 35 | 12-29 | 490 | 1655 |
| DN400 | 406 | 579 | 539.5 | 36.6 | 16-29 | 490 | 1785 |
| DN450 | 432 | 635 | 578 | 39.7 | 16-32 | 490 | 1905 |
| DN500 | 457 | 698 | 635 | 42.9 | 20-32 | 590 | 2195 |
| DN600 | 508 | 813 | 749.5 | 47.7 | 20-35 | 590 | 2475 |
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN50-DN600 |
| 2 | Nominal Pressure | 125/150PSI |
| 3 | Valve Design Standard | AWWA C509 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-3 |
| 5 | Flange Standard Conformity | ANSI B16.1 FF/RF |
| 6 | Testing Standard | API598 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
FAQ
Q: Our company participated in the 117th Canton Fair from April 15 to 19
Large diameter soft seal gate valve underground gate valve and small purpose valve using rubber integral package, in order to produce deformation compensation, so as to achieve good sealing effect, overcome the ordinary gate valve sealing poor, water leakage and rust problems, and more effectively save the installation space.
