Check Valve
Technical Parameter

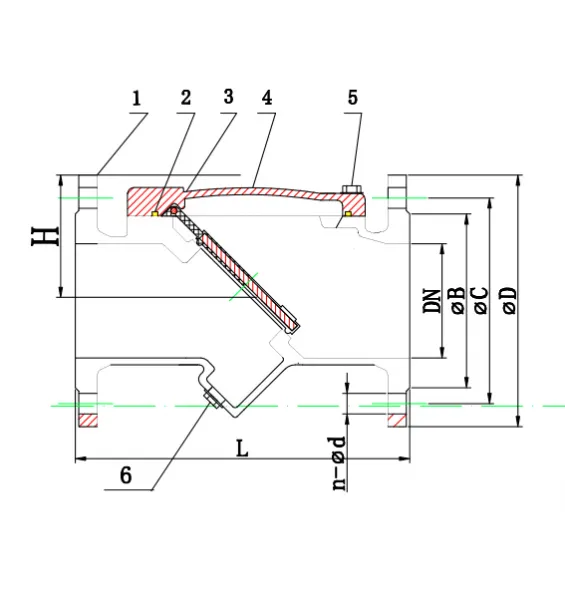

Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Gasket | EPDM |
| 3 | Cover | Ductile Iron GGG50 |
| 4 | Disc | CS/DI +EPDM |
| 5 | Bolts | A2-70 |
| 6 | Plug | Carbon Steel |
Dimensions(mm)
| DN | L | D | C | B | n-d | b | f | H | |||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| DN50 | 203 | 165 | 125 | 99 | 4-19 | 19 | 3 | 82 | |||||
| DN65 | 216 | 185 | 145 | 119 | 4-19 | 19 | 3 | 93 | |||||
| DN80 | 241 | 200 | 160 | 133 | 8-19 | 19 | 3 | 200 | |||||
| DN100 | 292 | 220 | 180 | 154 | 8-19 | 19 | 3 | 110 | |||||
| DN125 | 330 | 250 | 210 | 184 | 8-19 | 19 | 3 | 125 | |||||
| DN150 | 356 | 285 | 240 | 210 | 8-23 | 19 | 3 | 143 | |||||
| DN200 | 495 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | 170 | ||||
| DN250 | 622 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | 203 | |||
| DN300 | 698 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | 230 | |||
| DN350 | 787 | 520 | 460 | 470 | 429 | 16-23 | 16-28 | 26.5 | 4 | 260 | |||
| DN400 | 914 | 580 | 515 | 525 | 480 | 16-28 | 16-31 | 28 | 4 | 290 | |||
| DN450 | 978 | 640 | 565 | 585 | 530 | 548 | 20-28 | 20-31 | 30 | 4 | 320 | ||
| DN500 | 978 | 715 | 620 | 650 | 582 | 609 | 20-28 | 20-34 | 31.5 | 4 | 358 | ||
| DN600 | 1295 | 840 | 725 | 770 | 682 | 720 | 20-31 | 20-37 | 36 | 5 | 420 | ||
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN50-DN600 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve Design Standard | BS5153 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-10 |
| 5 | Flange Standard Conformity | EN1092-2 |
| 6 | Testing Standard | EN12266-1 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
