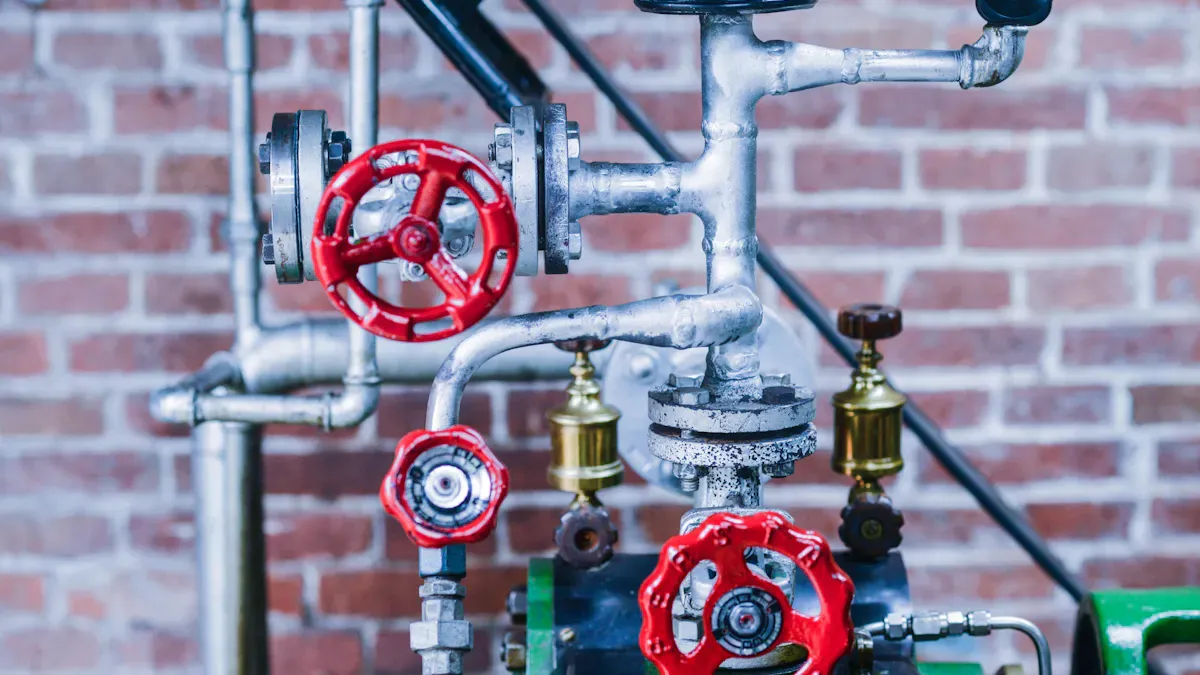

What Are Wafer, Lug, and Flanged Butterfly Valve Types

Wafer butterfly valves, along with lug and flanged butterfly valve types, are essential for effective flow control in water supply, wastewater treatment, HVAC, and fire protection applications. These butterfly valves provide rapid flow isolation in both municipal and industrial systems. Selecting the appropriate butterfly valve types or gate valves guarantees dependable water valves for pipeline systems.

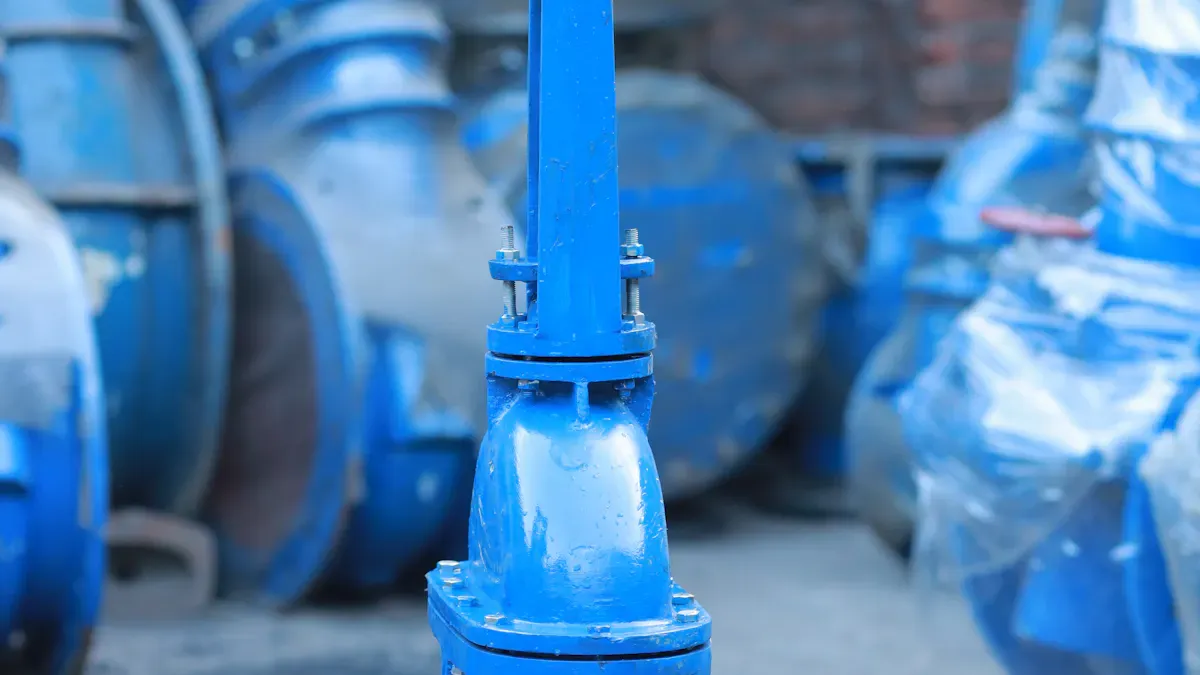

Overview of Different Types of Butterfly Valves

Wafer Butterfly Valve: Design and Features

Wafer butterfly valve types offer a compact structure that fits snugly between two pipeline flanges. These valves excel in space-constrained environments and provide cost-effective solutions for low-pressure applications. Maintenance is simple, and installation requires clamping the valve between flanges. Wafer butterfly valve types belong to the sandwich-style category and are not suitable for end-of-line service. Many concentric butterfly valves use wafer designs for efficient flow control.

Tip: Wafer butterfly valves are ideal for quick shut-off in water treatment and HVAC systems.

Lug Butterfly Valve: Installation and Applications

Lug butterfly valve types feature threaded tapped lugs for bolt connections. Installers position the valve body between pipeline flanges, insert bolts through the lugs, and tighten them in a cross-pattern. This method allows independent support and easy isolation of pipeline sections. Lug butterfly valve types are preferred in end-of-line discharge, high-pressure systems, and maintenance-heavy zones. Concentric butterfly valves with lug designs provide reliable shut-off and facilitate pipe removal without draining the system.

Flanged Butterfly Valve: Key Characteristics

Flanged butterfly valve types use a robust flange connection for secure installation. These valves handle higher pressure and temperature compared to wafer and lug types. Maintenance is easier because operators do not need to disassemble both flanges. Flanged butterfly valve types are suitable for critical safety lines and industrial utility applications. Many concentric butterfly valves with flanged connections deliver superior performance in demanding environments.

Resilient Seated vs Metal Seated Types of Butterfly Valves

Different types of butterfly valves include soft-seated butterfly valves and metal-seated butterfly valves. Soft-seated butterfly valves provide excellent sealing performance and can achieve zero leakage. They suit normal temperature and non-corrosive media. Metal-seated butterfly valves offer high temperature resistance and superior wear resistance. These valves are ideal for corrosive media and harsh environments. Choosing between these types depends on the application's sealing and durability requirements.

Structure Comparison and Selection Guide for Butterfly Valve Types

Wafer vs Lug vs Flanged: Main Differences

Wafer, lug, and flanged butterfly valve types each offer distinct structural advantages. Wafer butterfly valves fit between two flanges, making them compact and budget-friendly. Lug butterfly valves feature threaded lugs, allowing for independent bolting and easier maintenance. Flanged butterfly valves connect directly to pipe flanges, providing robust performance for high-pressure systems.

• Wafer butterfly valve types suit projects with limited budgets and space.

• Lug butterfly valves enable quick isolation and maintenance.

• Flanged butterfly valves deliver strength and reliability for demanding applications.

Concentric vs Double Eccentric Types of Butterfly Valves

Concentric butterfly valves align the stem and disc with the valve body centerline. This design relies on the disc compressing a soft seal for tight shut-off. Double eccentric butterfly valves offset the stem axis from the disc and body center, creating a cam effect that tightens the seal and reduces wear.

Double eccentric butterfly valves perform well in medium-pressure conditions and systems with impurities, such as wastewater treatment plants. Industrial cooling water systems benefit from reduced friction and extended service life. Triple-offset butterfly valves further minimize wear and pressure loss, making them ideal for high-performance applications.

Standards & Dimensions: DIN, ANSI, JIS References

International standards like DIN, ANSI, and JIS define critical dimensions and requirements for butterfly valves. DIN standards ensure uniform face-to-face measurements for interchangeability. ANSI standards specify pressure classes and material requirements for safe operation. JIS standards outline flange dimensions and bolt patterns for proper integration.

These standards dictate face-to-face measurements and flange specifications, allowing butterfly valves to be installed interchangeably across different systems. Flange standards define dimensions, pressure classes, and bolt hole patterns, ensuring compatibility and reliable performance.

Face-to-Face and Flange Matching Considerations

Flanged butterfly valves conform to standardized lengths, such as API 609, ensuring secure connections. Wafer-type butterfly valves are more compact, requiring installation space slightly larger than the valve length to accommodate gasket thickness. Flange matching is crucial for installation and sealing performance. Proper alignment and sealing materials enhance integrity and reliability. Flanged valves provide a rigid connection, accommodating various sealing options, including soft-seated and metal-seated butterfly valves. Maintenance involves gasket management and correct bolt torque to maintain leak-free operation.

Media Compatibility and Pressure Loss

Types of butterfly valves must match the media and pressure requirements of the system. Soft-seated butterfly valves provide excellent sealing for water and non-corrosive fluids. Metal-seated butterfly valves resist high temperatures and aggressive media, such as steam or chemicals. Concentric butterfly valves create higher pressure drops due to central disc obstruction. Double eccentric and triple-offset butterfly valves improve flow characteristics, reducing turbulence and pressure loss. Triple-offset butterfly valves align closely with the flow when open, minimizing pressure drop.

Note: Pressure loss remains manageable in water supply and HVAC systems, making butterfly valve types suitable for these applications.

Installation Space and Shut-Off Requirements

Wafer butterfly valves require minimal installation space and suit compact systems. Lug butterfly valves allow for end-of-line service and easy isolation of pipeline sections. Flanged butterfly valves need more space but offer robust shut-off capabilities. Lug butterfly valves can function as end-of-line valves, while wafer butterfly valves cannot. Maintenance convenience differs, with lug types requiring access to only one side and wafer types needing both sides disconnected.

Actuator Choice and Automation Options

Butterfly valve types support various actuator options for manual and automated control. Manual actuation uses handles or gear operators for infrequent operation. Pneumatic actuators provide fast and repeatable control using compressed air. Electric actuators offer precise positioning and integration with electrical control systems. Hydraulic actuators enable accurate control of valve opening.

Lug-style butterfly valves are compatible with electric and pneumatic actuators. Automation integration allows real-time monitoring and precise flow regulation, enhancing system efficiency.

Application Scenarios: Water Treatment, HVAC, Fire Systems, Industrial Utility Lines

Types of butterfly valves serve diverse applications. Water treatment systems require tight sealing and corrosion resistance. HVAC systems benefit from lightweight construction and optimized flow control. Fire protection systems demand quick operation for emergency response. Triple-offset butterfly valves excel in industrial utility lines, offering minimal pressure loss and reliable shut-off.

Why Choose Yaxing Valve for Different Types of Butterfly Valves

Yaxing Valve offers a comprehensive range of butterfly valve types, including wafer, lug, and flanged designs. The product lineup covers DN40–DN1200 and pressure classes PN10 / PN16. Yaxing Valve provides concentric and double-eccentric designs, as well as triple-offset butterfly valves for advanced applications. Typical materials include ductile iron bodies, stainless or nickel-plated discs, and resilient seats made from EPDM or NBR. FBE and epoxy coatings enhance durability.

Yaxing Valve delivers versatile sealing options, including soft-seated and metal-seated butterfly valves. Multiple actuation methods support manual, electric, pneumatic, and hydraulic control. Robust structural designs, such as centerline, double offset, and triple offset configurations, extend lifespan and improve sealing performance. Yaxing Valve products meet international certifications, including ASME, DIN, and SNI, ensuring quality and reliability.

Tip: Yaxing Valve stands out for its commitment to innovation, reliability, and customer satisfaction. Explore the full range of butterfly valve types at Yaxing Valve's official website.

• Wafer, lug, and flanged butterfly valves address unique installation and operational demands.

• Careful comparison of their structure, standards, and application scenarios leads to optimal system performance.

Tip: Always evaluate media compatibility, pressure rating, available space, and shut-off needs before selecting a butterfly valve type.
