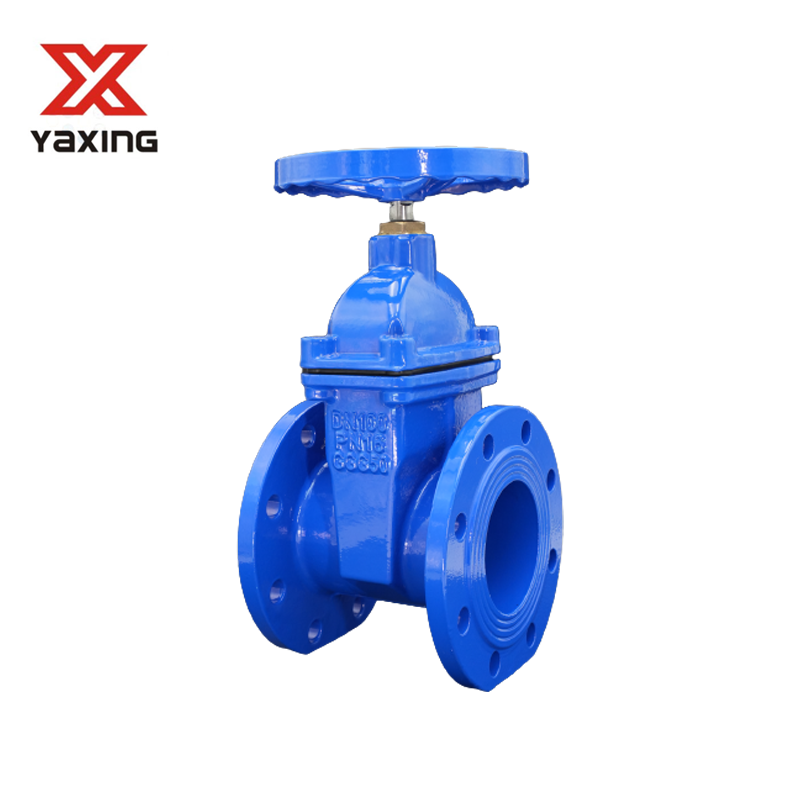

DIN Resilient Seated Gate Valve
Technical Parameter
Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50 EPDM |
| 3 | Stem | SS420 |
| 4 | Stem Nut | Brass |
| 5 | Bolts | CS Gr 8.8 |
| 6 | Gasket | EPDM |
| 7 | Bonnet | Ductile Iron GGG50 |
| 8 | O Ring | NBR |
| 9 | Bonnet Nut | Brass |
| 10 | PTFE Pad | PTFE |
| 11 | Thrust Washer | Brass |
| 12 | PTFE Pad | PTFE |
| 13 | Dust Cover | NBR |
| 14 | Hand Wheel/Cap | Ductile Iron GGG50 |
| 15 | Bolts | A2-70 |
Dimensions(mm)
| DN | L | D | C | B | n-d | b | f | W | H | ||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||||
| DN40 | 140 | 150 | 110 | 84 | 4-19 | 18 | 3 | 160 | 190 | ||||
| DN50 | 150 | 165 | 125 | 99 | 4-19 | 19 | 3 | 160 | 205 | ||||
| DN65 | 170 | 185 | 145 | 119 | 4-19 | 19 | 3 | 160 | 225 | ||||
| DN80 | 180 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | 180 | 250 | |||
| DN100 | 190 | 220 | 180 | 154 | 8-19 | 19 | 3 | 200 | 285 | ||||
| DN125 | 200 | 250 | 210 | 184 | 8-19 | 19 | 3 | 250 | 330 | ||||
| DN150 | 210 | 285 | 240 | 210 | 8-23 | 19 | 3 | 250 | 375 | ||||
| DN200 | 230 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | 300 | 480 | |||
| DN250 | 250 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | 330 | 590 | ||
| DN300 | 270 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | 380 | 650 | ||
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN40-DN300 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve Design Standard | DIN3352 F4 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-14 |
| 5 | Flange Standard Conformity | DIN2533 |
| 6 | Testing Standard | DIN3230 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
FAQ
Q: Our company participated in the 117th Canton Fair from April 15 to 19
Large diameter soft seal gate valve underground gate valve and small purpose valve using rubber integral package, in order to produce deformation compensation, so as to achieve good sealing effect, overcome the ordinary gate valve sealing poor, water leakage and rust problems, and more effectively save the installation space.
