DIN Resilient Seated Gate Valve
The DIN3352 F4/F5 Rising Stem Gate Valve with Resilient Seated (DN40–DN600) is a high-performance industrial valve manufactured in accordance with German DIN standards. It is ideal for on/off control in water supply, wastewater treatment, and industrial pipeline systems. Yaxing Rising Stem Gate Valve features a rising stem design for easy identification of valve position and simplified maintenance. The fully encapsulated resilient seat ensures zero leakage and extended service life.
Product Description
● Complies with DIN3352 F4 / F5 standards, offering a compact structure and wide applicability
● Rising stem design provides clear visual indication of valve status, ideal for above-ground installations
● Resilient seated for effective sealing, corrosion resistance, and pressure durability
● Size range: DN40–DN600, suitable for various pipeline dimensions
● Material options include cast iron, ductile iron, and more to meet diverse working conditions
● Municipal water supply systems
● Wastewater treatment plants
● Industrial process pipelines
● Firefighting systems
● Irrigation and agricultural water networks
Technical Parameter

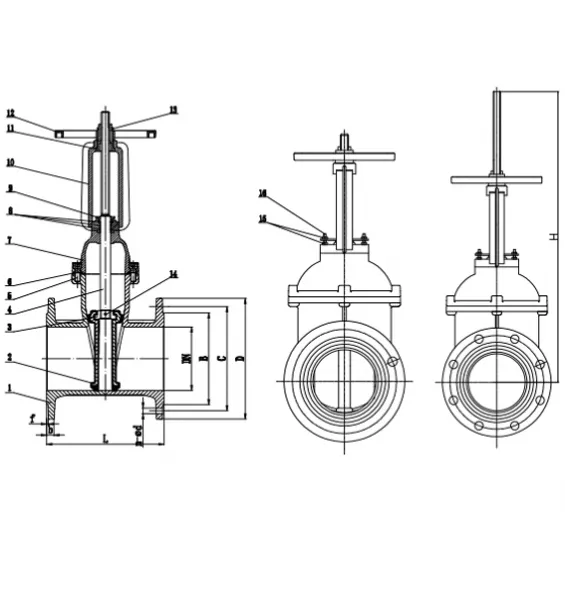

Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50+EPDM |
| 3 | Wedge Nut | Brass |
| 4 | Stem | SS420 |
| 5 | Bolts | CS Gr 8.8 |
| 6 | Gasket | EPDM |
| 7 | Bonnet | Ductile Iron GGG50 |
| 8 | O Ring | EPDM |
| 9 | Gland | Ductile Iron GGG50 |
| 10 | Yoke | Ductile Iron GGG50 |
| 11 | Stem Nut | Brass |
| 12 | Handwheel | Ductile Iron GGG50 |
| 13 | Lock nut | Carbon Steel |
| 14 | Pin | Carbon Steel |
| 15 | Nuts | Carbon Steel |
| 16 | Bolts | Carbon Steel |
Dimensions(mm)
| DN | L | D | C | B | n-d | b | f | W | Full Open H | ||||||
| F4 | F5 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| DN40 | 140 | 240 | 150 | 110 | 84 | 4-19 | 18 | 3 | 160 | 350 | |||||
| DN50 | 150 | 250 | 165 | 125 | 99 | 4-19 | 19 | 3 | 160 | 365 | |||||
| DN65 | 170 | 270 | 185 | 145 | 119 | 4-19 | 19 | 3 | 160 | 400 | |||||
| DN80 | 180 | 280 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | 180 | 470 | ||||
| DN100 | 190 | 300 | 220 | 180 | 154 | 8-19 | 19 | 3 | 200 | 525 | |||||
| DN125 | 200 | 325 | 250 | 210 | 184 | 8-19 | 19 | 3 | 250 | 660 | |||||
| DN150 | 210 | 350 | 285 | 240 | 210 | 8-23 | 19 | 3 | 250 | 725 | |||||
| DN200 | 230 | 400 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | 300 | 930 | ||||
| DN250 | 250 | 450 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | 330 | 1200 | |||
| DN300 | 270 | 500 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | 380 | 1310 | |||
| DN350 | 290 | 550 | 520 | 460 | 470 | 429 | 16-23 | 16-28 | 24.5 | 26.5 | 4 | 490 | 1655 | ||
| DN400 | 310 | 600 | 565 | 580 | 515 | 525 | 480 | 16-28 | 16-31 | 24.5 | 28 | 4 | 490 | 1785 | |
| DN450 | 330 | 650 | 640 | 565 | 585 | 530 | 548 | 20-28 | 20-31 | 25.5 | 30 | 4 | 490 | 1905 | |
| DN500 | 350 | 700 | 670 | 715 | 620 | 650 | 582 | 609 | 20-28 | 20-34 | 26.5 | 31.5 | 4 | 590 | 2195 |
| DN600 | 390 | 800 | 780 | 840 | 725 | 770 | 682 | 720 | 20-31 | 20-37 | 30 | 36 | 5 | 590 | 2475 |
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN40-DN600 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve Design Standard | DIN3352 F4/F5 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-14/15 |
| 5 | Flange Standard Conformity | DIN2533 |
| 6 | Testing Standard | DIN3230 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
