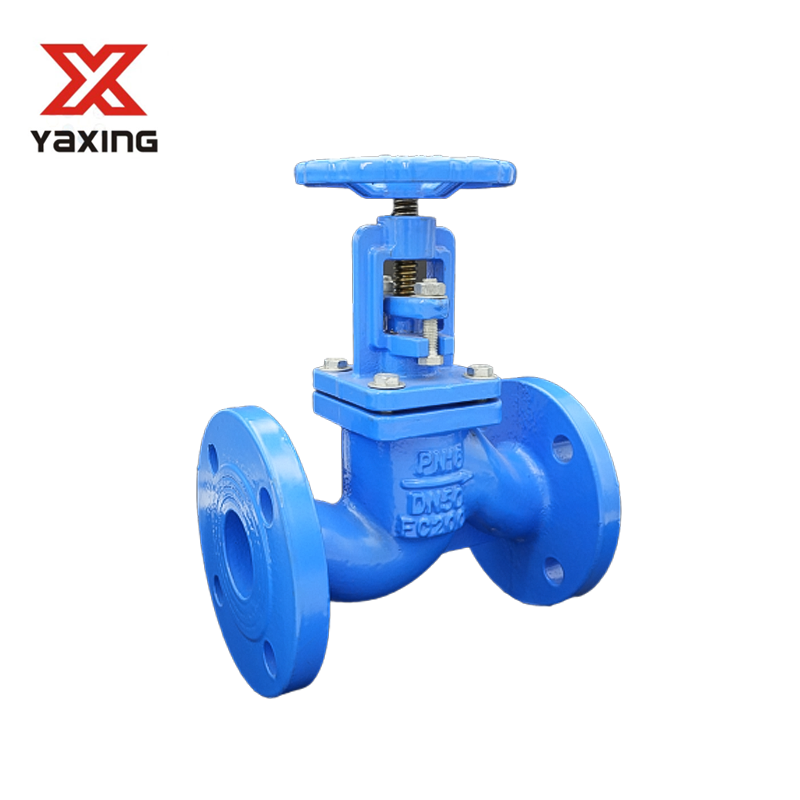

Other Valve
Technical Parameter

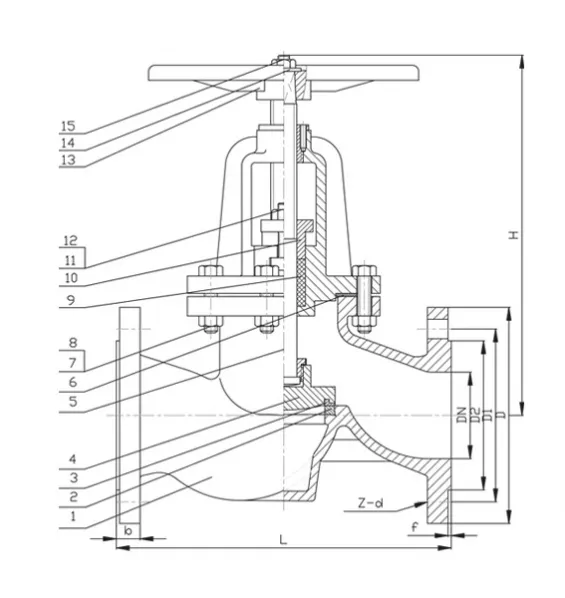

Part & Materials
| No | Part | Material |
| 1 | Body | Gray Cast Iron GG25 |
| 2 | Body Seat Ring | Brass |
| 3 | Disc Seat Ring | Brass |
| 4 | Disc | Gray Cast Iron GG25 |
| 5 | Stem | SS420 |
| 6 | Gasket | Graphite |
| 7 | Bonnet Bolt | Carbon Steel |
| 8 | Nut | Carbon Steel |
| 9 | Packing | Graphite |
| 10 | Gland | Gray Cast Iron GG25 |
| 11 | T-bolt | Carbon Steel |
| 12 | Nut | Carbon Steel |
| 13 | Bonnet | Gray Cast Iron GG25 |
| 14 | Washer | Gray Cast Iron GG25 |
| 15 | Wheel Bolt | Carbon Steel |
Dimensions(mm)
| DN | L | D | D1 | D2 | n-d | b | f | H | |||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||
| DN40 | 200 | 150 | 110 | 84 | 4-19 | 18 | 3 | 258 | |||||
| DN50 | 230 | 165 | 125 | 99 | 4-19 | 20 | 3 | 276 | |||||
| DN65 | 290 | 185 | 145 | 119 | 4-19 | 20 | 3 | 302 | |||||
| DN80 | 310 | 200 | 160 | 133 | 8-19 | 22 | 3 | 322 | |||||
| DN100 | 350 | 220 | 180 | 154 | 8-19 | 24 | 3 | 347 | |||||
| DN125 | 400 | 250 | 210 | 184 | 8-19 | 26 | 3 | 406 | |||||
| DN150 | 480 | 285 | 240 | 210 | 8-23 | 26 | 3 | 433 | |||||
| DN200 | 600 | 340 | 295 | 265 | 8-23 | 12-23 | 30 | 3 | 506 | ||||
| DN250 | 730 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 32 | 3 | 556 | |||
| DN300 | 850 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 32 | 4 | 648 | |||
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN40-DN300 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve Design Standard | DIN3202 F1 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-1 |
| 5 | Flange Standard Conformity | DIN2533 |
| 6 | Testing Standard | DIN3230 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
