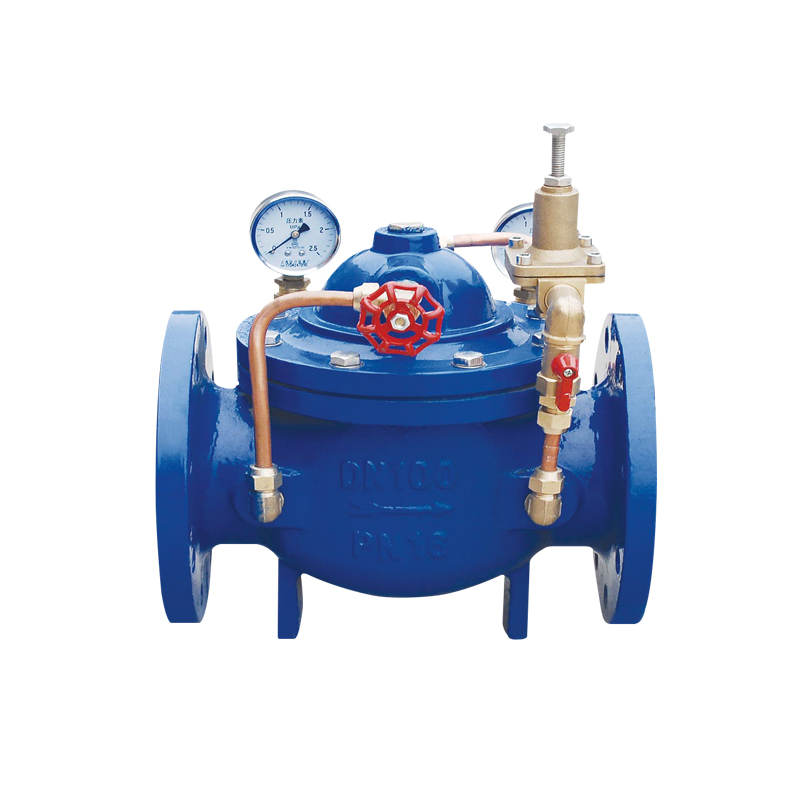

Pressure Reducing Valve
Technical Parameter

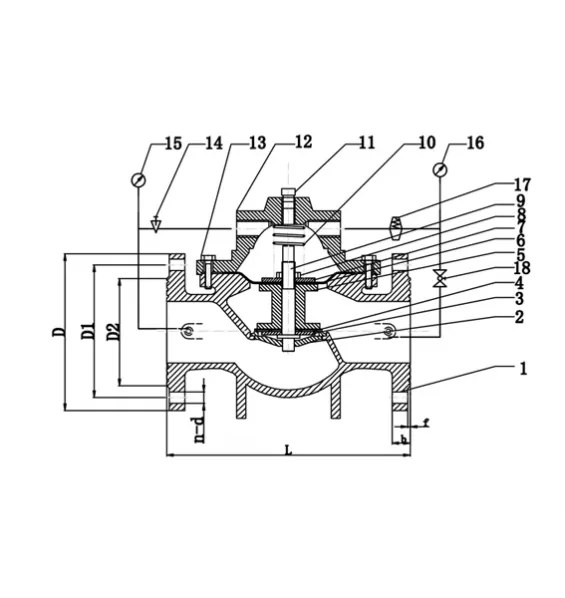

Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Seat | Brass |
| 3 | Platen | CS |
| 4 | Sealing | EPDM |
| 5 | Disc | Ductile Iron GGG50 |
| 6 | DIamphragm | EPDM |
| 7 | Platen | CS |
| 8 | Nut | Stainless Steel |
| 9 | Stem | SS410 |
| 10 | Spring | Stainless Steel |
| 11 | Plug | Brass |
| 12 | Bonnet | Ductile Iron GGG50 |
| 13 | Bolts | A2-70 |
| 14 | Needle Valve | Brass |
| 15 | Pressure Gauge | - |
| 16 | Pressure Gauge | - |
| 17 | Pilot Valve | Brass |
Dimensions(mm)
| DN | L | D | C | B | n-d | b | f | |||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||
| DN50 | 240 | 160 | 125 | 99 | 4-19 | 19 | 3 | |||||
| DN65 | 240 | 180 | 145 | 119 | 4-19 | 19 | 3 | |||||
| DN80 | 292 | 195 | 160 | 133 | 8-19 | 19 | 3 | |||||
| DN100 | 325 | 215 | 180 | 154 | 8-19 | 19 | 3 | |||||
| DN125 | 340 | 245 | 210 | 184 | 8-19 | 19 | 3 | |||||
| DN150 | 400 | 280 | 240 | 210 | 8-23 | 19 | 3 | |||||
| DN200 | 435 | 335 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | ||||
| DN250 | 510 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | |||
| DN300 | 600 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | |||
| DN350 | 675 | 520 | 460 | 470 | 429 | 16-23 | 16-28 | 26.5 | 4 | |||
| DN400 | 720 | 575 | 515 | 525 | 480 | 16-28 | 16-31 | 28 | 4 | |||
| DN450 | 720 | 635 | 515 | 525 | 480 | 16-28 | 16-31 | 28 | 4 | |||
| DN500 | 790 | 710 | 620 | 650 | 582 | 609 | 20-28 | 20-34 | 31.5 | 4 | ||
| DN600 | 970 | 840 | 725 | 770 | 682 | 720 | 20-31 | 20-37 | 36 | 5 | ||
| DN700 | 1120 | 910 | 840 | 794 | 24-31 | 24-37 | 39.5 | 5 | ||||
| DN800 | 1200 | 1025 | 950 | 901 | 24-34 | 24-40 | 35 | 43 | 5 | |||
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN50-DN800 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Flange Standard Conformity | EN1092-2 |
| 4 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 5 | Working Temperature(Max) | 80℃ |
