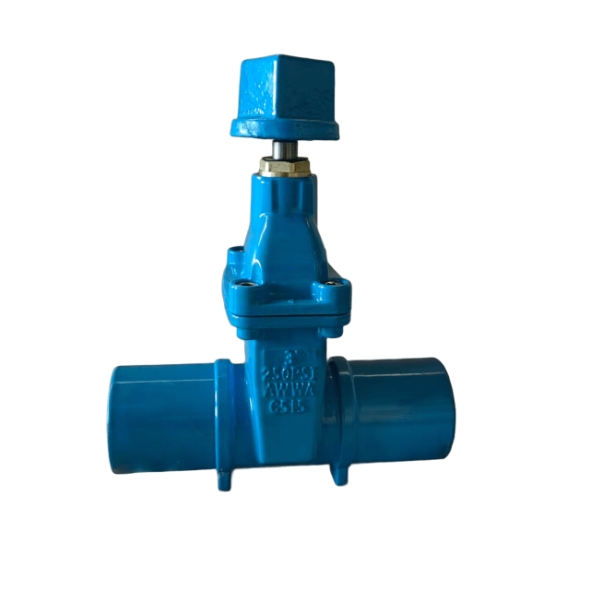

Spigot Ends Resilient Seated Gate Valve
Yaxing offers Ductile Iron Resilient Seated Gate Valves based on internal Drawing Copper.docx, available in sizes ranging from DN40 to DN300, featuring non-rising stem design and SS304 bolts. These valves are widely used in water supply, sewage treatment, and industrial neutral liquid systems. Equipped with EPDM fully encapsulated wedge and corrosion-resistant SS304 fasteners, they ensure low operating torque and long-lasting, stable sealing performance.
Product Description
Non-rising stem design for space-saving installation
EPDM fully encapsulated wedge for zero leakage
SS304 stainless steel bolts for enhanced corrosion resistance
Ductile Iron GGG50 body for high strength
Full size range DN40-DN300
Technical Parameter

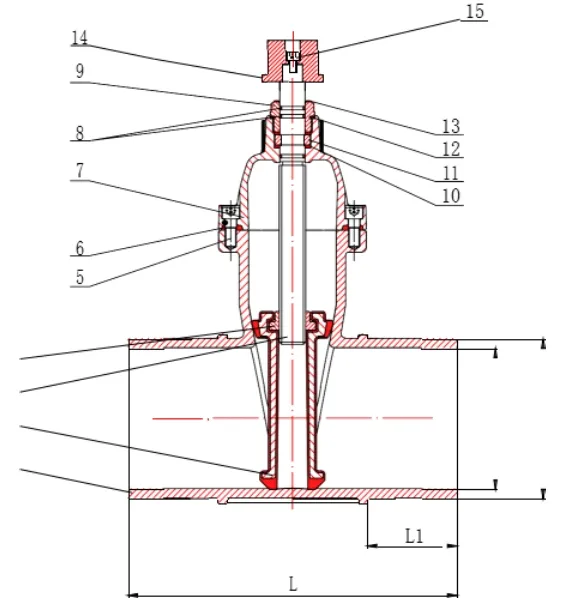

Part & Materials
| No. | Part Name | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50+EPDM |
| 3 | Stem | Stainless Steel |
| 4 | Stem Nut | Brass |
| 5 | Bolts | SS304 |
| 6 | Gaket | EPDM |
| 7 | Bonnet | Ductilr Iron GGG50 |
| 8 | O Ring | NBR |
| 9 | Bonnet Nut | Brass |
| 10 | PTFE Pad | PTFE |
| 11 | Locating | Ductile Iron GGG50 |
| 12 | PTFE Pad | PTFE |
| 13 | Dust Cover | NBR |
| 14 | Drive cap | Ductile Iron GGG50 |
| 15 | Bolts | SS304 |
Dimensions(mm)
| DN | DN40 | DN50 | DN65 | DN80 | DN100 | DN150 | DN200 | DN250 | DN300 |
| L | 240 | 250 | 270 | 280 | 300 | 350 | 400 | 450 | 500 |
| D | 50 | 63 | 75 | 90 | 110 | 160 | 200 | 250 | 315 |
| L1 | 75 | 75 | 80 | 80 | 85 | 100 | 120 | 130 | 140 |
Technical Data
| RESILIENT SEATED GATE VALVE WITH SPIGOT ENDS | ||
| No. | Description | Specification |
| 1 | Nominal Dia | DN50-DN300 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve design Standard | AWWA C515 |
| 4 | Face to face Standard | EN558 & ISO5752 series-15 |
| 5 | Testing Standard | EN12266-1 |
| Epoxy powder coating RAL5005 with minimum thickness of 250 microns inside and outside. | ||
| 6 | Epoxy Coating | |
| Testing Pressure | ||
| 7 | Shell Test | PN*1.5times |
| Sealing Test | PN*1.1times | |
| 8 | Working Temperature(Max) | 120℃ |
