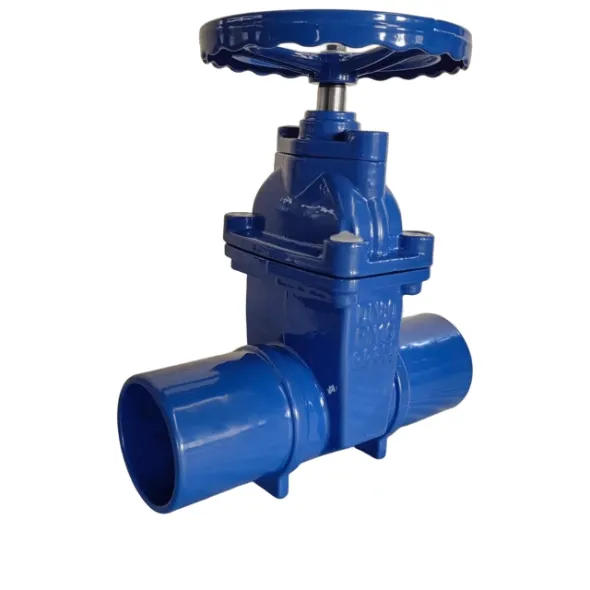

Spigot Ends Resilient Seated Gate Valve
Yaxing Valve offers high-performance Resilient Seated Gate Valves with spigot ends, compliant with AWWA C5150 standard. Available in sizes DN50 to DN300, designed for water supply and industrial systems. Features EPDM encapsulated wedge and epoxy coating RAL5005 with 250 microns thickness.
Product Description
Standards Compliance: Designed according to AWWA C5150, ensuring dimensional interchangeability and product consistency.
Excellent Sealing: Full EPDM rubber encapsulated wedge, zero leakage.
Spigot Ends: Easy to install with compatible pipe systems.
Full Size Range DN50–DN300: Compatible with various flow rates and pipeline systems.
Durable Coating: Epoxy powder coating RAL5005, min. 250μm inside and outside.
Technical Parameter

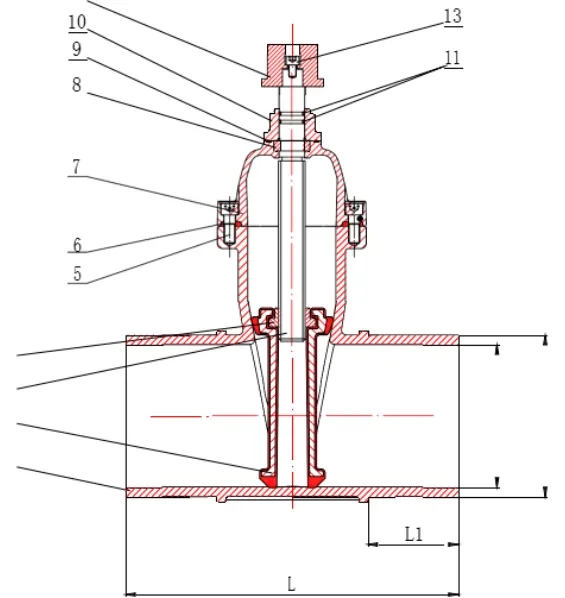

Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50 + EPDM |
| 3 | Stem | Stainless Steel |
| 4 | Stem Nut | Brass |
| 5 | Bolts | Carbon Steel |
| 6 | Gasket | EPDM |
| 7 | Bonnet | Ductile Iron GGG50 |
| 8 | Locating | Ductile Iron GGG50 |
| 9 | O Ring | NBR |
| 10 | Gland | Ductile Iron GGG50 |
| 11 | O Ring | NBR |
| 12 | Drive cap | Ductile Iron GGG50 |
| 13 | Bolts | Carbon Steel |
Dimensions(mm)
| DN | DN40 | DN50 | DN65 | DN80 | DN100 | DN150 | DN200 | DN250 | DN300 |
| L | 240 | 250 | 270 | 280 | 300 | 350 | 400 | 450 | 500 |
| D | 50 | 63 | 75 | 90 | 110 | 160 | 200 | 250 | 315 |
| L1 | 75 | 75 | 80 | 80 | 85 | 100 | 120 | 130 | 140 |
Technical Data
| No. | Description | Specification |
| 1 | Nominal Dia | DN50-DN300 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve design Standard | AWWA C515 |
| 4 | Face to face Standard | EN558 & ISO5752 series-15 |
| 5 | Testing Standard | EN12266-1 |
| 6 | Epoxy Coating | Epoxy powder coating RAL5005 with minimum thickness of 250 microns inside and outside |
| 7 | Shell Test | PN × 1.5 times |
| 7 | Sealing Test | PN × 1.1 times |
| 8 | Working Temperature (Max) | 120℃ |
