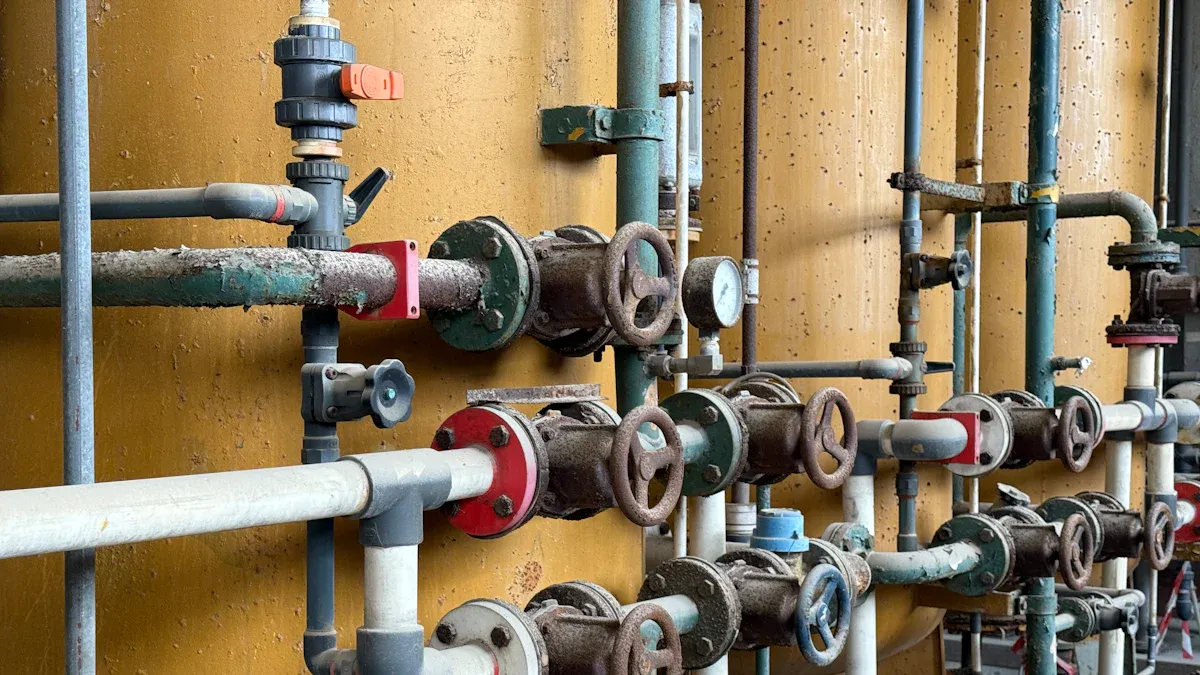

Key Factors in Choosing Gate Valve Types for Modern Water Systems

Gate valve types are crucial for effective control in water shut-off and plumbing systems. The right selection of gate valves ensures reliable operation, safety, and durability. The quality of installation significantly impacts performance and maintenance. Water valves, including butterfly valves and socket end resilient seated gate valve designs, cater to a variety of needs in plumbing applications.

Gate Valve Types and Their Functions in Water Systems

Resilient Seated vs. Metal Seated Gate Valve Types

Gate valve types play a vital role in modern water systems. Engineers and operators often choose between resilient seated and metal seated gate valves based on system requirements. Resilient seated gate valves use rubber or elastomer seats to achieve bubble-tight sealing. These valves prevent leakage in potable water, irrigation, and wastewater treatment applications. Metal seated gate valves rely on metal-to-metal contact, which may allow minor leakage but offers durability in harsh environments.

Operators prefer resilient seated gate valves for clean water systems because they deliver zero-leakage performance and lower maintenance costs. Metal seated gate valves suit applications where robust structure and resistance to high temperatures are necessary. Both gate valve types support reliable shut-off and isolation functions in plumbing valve installations.

Tip: Resilient seated gate valves offer lower operating torque and easier maintenance, making them ideal for potable water distribution networks.

Rising Stem vs. Non-Rising Stem Gate Valve Designs

Gate valve designs impact visibility, space requirements, and maintenance. Rising stem gate valves feature a stem that moves up and down with the gate. This movement is visible from outside the valve, allowing operators to monitor valve status easily. Non-rising stem gate valves keep the stem stationary during operation. These valves fit installations with limited vertical space, such as underground plumbing systems.

Rising stem gate valves excel in water supply and drainage systems where frequent switching and quick maintenance are necessary. Non-rising stem gate valves serve municipal water distribution networks and underground plumbing valve installations. Both gate valve types contribute to efficient water control and system reliability.

Socket End vs. Flanged End Water Valve Connections

Connection types influence installation and maintenance in water systems. Socket end gate valves connect directly to pipes using a socket joint. This method simplifies installation in small-diameter plumbing applications. Flanged end gate valves use bolted flanges for secure connections. Flanged ends provide robust sealing and allow easy removal for maintenance or replacement.

• Socket end connections suit compact plumbing valve installations and potable water lines.

• Flanged end connections offer strength and accessibility in large-diameter water systems and industrial applications.

Operators select the appropriate gate valve connection based on pipe size, system pressure, and maintenance needs. Both connection types support reliable water valve performance and facilitate efficient valve selection guide practices.

Standard-Based Types of Gate Valves (AWWA, DIN, BS)

Gate valve types must comply with industry standards to ensure safety and performance. The American Water Works Association (AWWA), German Institute for Standardization (DIN), and British Standards (BS) define specifications for gate valves used in water systems.

Manufacturers design gate valve types to meet these standards, guaranteeing compatibility with local codes and regulatory requirements. Standard-based gate valves ensure consistent quality, reliable operation, and long-term durability in water valve installations.

Note: Selecting gate valve types that comply with recognized standards simplifies maintenance and supports system longevity.

Water system designers rely on a valve selection guide to match gate valve types to specific applications, including potable water, irrigation, and wastewater treatment. The right types of valves enhance system performance and safety in plumbing and municipal networks.

Material Selection and Durability for Gate Valve Types

Common Gate Valve Body Materials

Engineers consider several materials when choosing a gate valve for water systems. Each material offers unique strengths and weaknesses that impact performance and durability. The table below highlights common options:

Seat Material Selection and Performance

Material selection for gate valve seats plays a critical role in water system performance. Engineers must match seat materials to the fluid’s purity and corrosiveness. The right choice prevents corrosion, wear, and mechanical failures. Proper material selection ensures reliable valve operation and extends service life. Operators often select resilient materials for plumbing applications to maintain performance under varying pressures and temperatures.

• Seat materials must endure pressure, temperature, and fluid corrosiveness.

• Material selection helps avoid corrosion and mechanical failures.

• Engineers consider fluid properties to prevent wear and ensure durability.

• Abrasive environments require hard-facing materials for enhanced performance.

Corrosion Resistance and Service Life

Corrosion resistance determines how long a gate valve will perform in water systems. Lead-free brass and 316 stainless steel offer excellent corrosion protection for potable water. Forged 316L stainless steel combines corrosion resistance with added strength, making it ideal for high-strength applications. Operators select materials based on corrosion resistance to maximize valve performance and minimize maintenance. Water systems benefit from valves that resist corrosion, ensuring reliable operation and long service life.

Tip: Choosing corrosion-resistant materials during gate valve selection improves performance and reduces maintenance costs.

Sizing and Compatibility in Gate Valve Selection

DN vs. NPS Sizing for Water Valve Applications

Gate valve sizing uses two main standards: DN (Diameter Nominal) and NPS (Nominal Pipe Size). These standards affect how engineers select and install valves in water systems. DN is common in Europe and Asia, while NPS is used in North America. The differences between these standards impact compatibility and interchangeability in international water projects. Understanding both systems helps prevent procurement mistakes and ensures that gate valve components fit properly in plumbing and water applications. Standardizing the outer diameter of pipes has improved compatibility, making it easier to match valves across different regions.

Matching Gate Valve Size to System Flow and Pipe

Selecting the right gate valve size is important for efficient water flow and system performance. Engineers consider several factors when matching valve size to system flow and pipe diameter. The table below outlines key considerations:

Proper gate valve selection ensures that water moves efficiently through the system and reduces the risk of damage or leaks in plumbing networks.

Pressure Class Ratings and System Compatibility

Pressure class ratings play a key role in choosing the right gate valve for water systems. These ratings show the maximum pressure a valve can handle. For example, a Class 150 valve can withstand up to 285 psi, while a Class 300 valve can handle 740 psi. Higher class ratings mean the valve can tolerate higher pressures. Selecting the correct pressure ratings prevents failures and keeps water systems safe and reliable. Engineers must always check that the gate valve matches the system’s pressure requirements for the best performance.

Tip: Always verify pressure ratings during gate valve selection to ensure long-term safety and durability in water applications.

Pressure and Flow Considerations for Gate Valve Types

Maximum and Minimum Pressure Ratings

Engineers must consider pressure ratings when selecting a gate valve for water systems. Each valve type has a specific maximum pressure it can handle. The table below shows typical pressure ratings for common gate valves used in municipal water systems:

Pressure ratings ensure the valve can withstand the demands of water flow control in plumbing and municipal applications. Choosing the correct pressure class protects the system from leaks and failures.

Flow Capacity and Head Loss in Water Valve Selection

Flow capacity measures how much water can pass through a gate valve without causing excessive resistance. A valve with high flow capacity allows water to move freely, reducing energy costs and improving system efficiency. Head loss refers to the drop in pressure as water flows through the valve. Lower head loss means better performance and less strain on pumps. Engineers look for gate valves that balance flow control and minimal head loss to keep water systems running smoothly.

Note: Proper valve selection helps maintain steady water pressure and prevents unnecessary wear on system components.

Throttling vs. Isolation Functions

Gate valves serve best as isolation devices. Operators use them to stop or allow water flow completely. When used for throttling, gate valves face problems. High-velocity water can cause erosion, turbulence, and vibration inside the valve. This damage shortens the valve’s lifespan and affects sealing surfaces. For precise flow control, other valve types work better. Gate valves remain the top choice for isolation in water and plumbing systems.

Environmental and Installation Factors in Gate Valve Selection

Buried vs. Above-Ground Gate Valve Installation

Engineers must consider the environment when planning gate valve installation. Buried and above-ground applications present different challenges. The table below outlines key factors for each scenario:

Buried gate valve installation requires robust construction to withstand soil pressure and temperature changes. Above-ground valves offer easier access but may need protection from environmental exposure.

Accessibility and Maintenance for Water Valves

Accessibility impacts the maintenance and reliability of water systems. Proper installation ensures that operators can reach the valve for inspection and repairs. The table below highlights how accessibility affects maintenance:

Accessible gate valve installation reduces downtime and supports efficient plumbing operations. Operators can quickly isolate sections for repair, which helps maintain steady water flow.

Torque Requirements and Actuation Options

Torque requirements influence the choice of manual or automated actuation for gate valves. Actuated valves use external energy sources to control water flow. Key components include the valve body, actuator, positioner, and controller. Manufacturers provide torque specifications, but these values often reflect only the seating or unseating torque at rated pressure. Actual operating torque depends on installation orientation, flow direction, and fluid velocity. Understanding these factors ensures proper valve selection and reliable water system performance.

Tip: Always review torque requirements and actuation options during gate valve installation to ensure smooth operation and long service life.

Compliance with Standards and Regulations for Gate Valve Types

Key Standards (AWWA, DIN, BS) in Gate Valve Selection

Engineers rely on recognized standards to ensure gate valve performance in water systems. The American Water Works Association (AWWA), German Institute for Standardization (DIN), and British Standards (BS) specify requirements for gate valve design, materials, and testing. These standards help operators achieve reliable water shut-off and isolation in plumbing networks. The table below shows important AWWA standards for gate valve selection:

Manufacturers build gate valves to meet these standards, supporting safe and efficient water control.

Local Codes and Regulatory Compliance

Local codes and regulations shape gate valve installation in municipal water projects. Inspectors enforce compliance, which affects valve selection and material choices. The table below outlines key regulations:

Operators must follow these rules to protect public health and maintain water quality in plumbing systems.

Certification and Quality Assurance with Yaxing Valve

Yaxing Valve provides gate valves that meet strict certification and quality assurance standards. The company follows ISO 9001:2015 for quality management and API standards for valve design and testing. Specialized certifications, such as ISO 15848 for fugitive emissions and ISO 10497 for fire safety, support specific water applications. Material Test Reports (MTRs) confirm material properties and traceability. These reports include:

• Material heat number for traceability

• Full chemical analysis

• Mechanical test results, such as tensile and yield strength

Yaxing Valve ensures every gate valve meets industry standards, supporting reliable water control and long-term performance.

Cost and Maintenance Implications in Gate Valve Selection

Initial Cost vs. Lifecycle Cost of Water Valves

When evaluating a gate valve for a water system, engineers look beyond the initial purchase price. The total lifecycle cost includes energy use, maintenance, and replacement. The breakdown of costs in a typical medium-size industrial pumping system shows the importance of considering the full picture:

• The initial cost makes up about 10% of the total lifecycle cost.

• Energy costs account for roughly 40% of the total lifecycle cost.

• Maintenance costs represent around 25% of the total lifecycle cost.

A gate valve with a lower initial price may lead to higher expenses over time if it requires frequent repairs or uses more energy. Careful selection helps reduce long-term costs and improves system reliability.

Maintenance Frequency and Ease of Repair

Regular maintenance keeps a gate valve working efficiently in water and plumbing systems. Operators should follow these steps to ensure reliable performance:

• Inspect the gate valve at least once a year for corrosion, leaks, or stiffness.

• Turn the valve occasionally to prevent it from seizing.

• Lubricate the valve stem regularly for smooth operation.

• Clean out debris or sediment that could block the valve.

• For repairs, identify the issue, disassemble the valve, replace or fix parts, reassemble, and test.

Simple maintenance routines extend the life of a water valve and reduce downtime.

Spare Parts Availability and Support from Yaxing Valve

Yaxing Valve provides strong support for spare parts and after-sales service. The company maintains a wide inventory of replacement components for every gate valve model. Customers can access technical support and guidance for repairs or upgrades. This commitment ensures that water systems remain operational and efficient, even as maintenance needs arise.

Tip: Reliable spare parts availability from trusted suppliers like Yaxing Valve helps minimize system interruptions and supports long-term performance.

Application Scenarios for Types of Gate Valves

Municipal Water Supply Gate Valve Types

Municipal water systems rely on several gate valve types to ensure reliable distribution and control.

1. Solid wedge gate valves provide a robust structure, making them a common choice for city water networks.

2. Flexible wedge gate valves adapt to temperature changes, which helps maintain a tight seal during fluctuating conditions.

3. Parallel gate valves work efficiently in low-pressure and large-diameter water systems.

Operators select these valves because they offer small flow resistance, require less effort to operate, and resist water hammer effects. These features help maintain steady water flow and reduce maintenance in municipal plumbing systems.

Irrigation Network Water Valve Selection

Irrigation networks demand careful gate valve selection to ensure crops receive the right amount of water. The following table highlights key factors:

Valves in irrigation systems must also handle debris, match hydraulic requirements, and withstand frequent operation. Gate valves help regulate water supply, supporting sustainable agriculture.

Fire Protection System Gate Valve Types

Fire protection systems require reliable gate valves that meet strict standards. ANSI and DIN standards govern these valves, ensuring safety and performance. Many systems use steel gate valves that comply with API 600. These valves provide dependable shut-off and isolation, which is critical during emergencies.

Wastewater and Sewage Gate Valve Applications

Wastewater and sewage systems present unique challenges for gate valve selection. Operators must address corrosion, wear, sealing, and pressure variations. The table below summarizes these challenges:

Selecting the right gate valve ensures safe, efficient, and long-lasting water valve performance in demanding wastewater environments.

Engineers consider structure, material, standards, installation, and operational needs during gate valve selection. Matching the right water valve to each plumbing system ensures reliable performance. Consulting trusted manufacturers like Yaxing Valve helps achieve the best results. Regular maintenance and following standards support long-term water system reliability.

FAQ

What is the main function of a gate valve in water systems?

A gate valve controls water flow by opening or closing a gate inside the valve body. It provides reliable shut-off for pipelines.

How often should operators inspect water valves in municipal systems?

Operators should inspect water valves at least once a year. Regular checks help prevent leaks and ensure smooth operation.

Can a gate valve be used for throttling water flow?

Engineers do not recommend using a gate valve for throttling. It works best for full open or closed positions to avoid damage.
